詳細情報 |
|||
| 動作重量: | 21200KG | バケット容量: | 0.93mの³ |
|---|---|---|---|
| エンジン: | F4.5CS416、125kW、2200rpm | 燃料タンク: | 400L |
| 油圧タンク: | 150L | ||
製品の説明

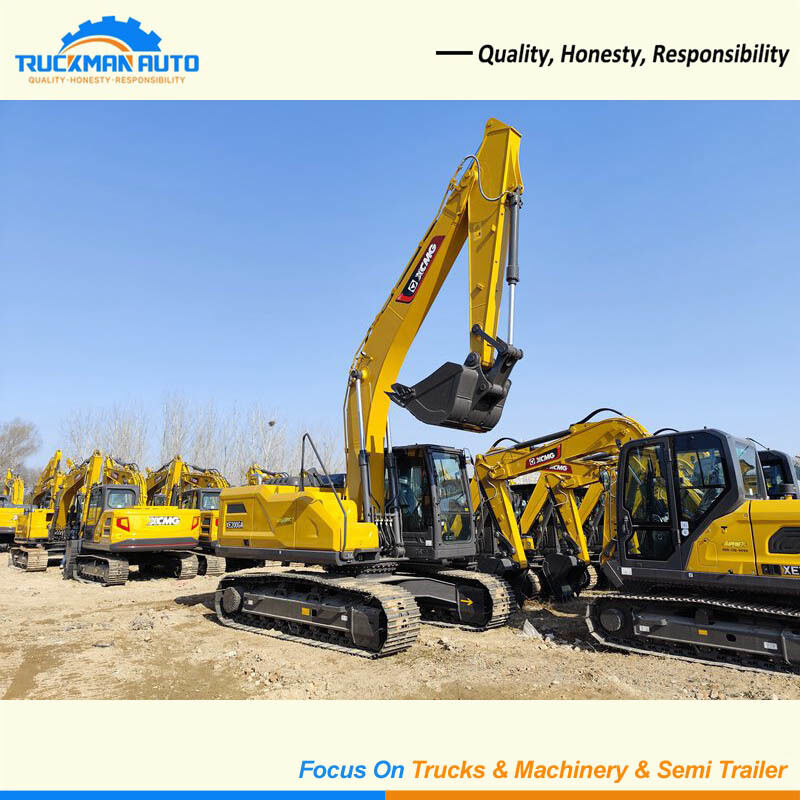

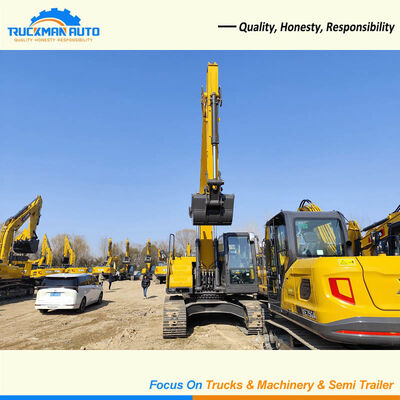

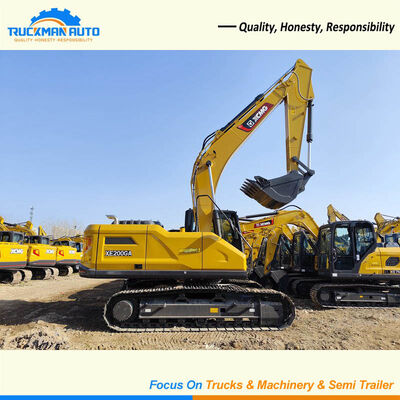

Why Does The XCMG XE200GA Crawler Excavator Become Top Choice For Construction Industry?
The 21.2 Tons XCMG Crawler Excavator is a high performance mid sized machine. Equipped with a high torque engine, it features a fuel injection system customized and optimized for excavator characteristics, paired with a high speed turbocharger to significantly reduce fuel consumption;Equipped with high strength boom arms for greater digging force, making excavation in hard soil easier and more efficient.Full LED lighting system with superior brightness and extended lifespan, featuring wide angle illumination for enhanced safety during nighttime construction.
What Are The Key Technical Specifications Of The 21.2 Tons XCMG XE200GA Crawler Excavator?
| Description | Parameter Value |
| Product Name | 21.2 Tons XCMG XE200GA Crawler Excavator |
| Application | Construction Industry |
| Engine | F4.5CS416,125kW, 2200rpm |
| Fuel Tank | 400L |
| Hydraulic Tank | 150L |
| Operating Weight | 21200kg |
| Bucket Capacity | 0.93m³ |
| Maximum traction force | 198kN |
|
Max. travel speed (high/low) |
5.5/3.0 km/h |
| Dimension | 9840x2925x3008mm |
The 21.2 Tons XCMG XE200GA Crawler Excavator can be customised to meet your requirements.
What Other Models Of Crawler Excavator Are Available For You?
| Model | Operating Weight | Bucket Cpacity |
| 20 Tons DEVELON DX220LCA Crawler Excavator | 20 Tons | 0.92 m³ |
| 32.8 Tons LONGKING CDM6336 Crawler Excavator | 32.8 Tons | 1.6 m³ |
→Ask us for which crawler excavator is suitted for your requirements.
Why Does The XCMG XE200GA Crawler Excavator Could Operate Stably?
The XE200GA crawler excavator features an advanced hydraulic system.The hydraulic system drives the excavator's working equipment to perform a series of complex operations, including digging, lifting, rotating, and unloading.This excavator's positive flow hydraulic system features independently controlled sub pumps, delivering oil on demand to effectively reduce neutral return flow losses and conserve energy. Its high displacement main pump offers robust load bearing capacity with a 2% increase in output efficiency. The large bore main valve ensures high reliability, while optimized oil passages reduce pressure loss by 10% for efficient flow distribution and smooth composite operations. The high torque swing motor head delivers substantial rotation torque with enhanced efficiency.
Frequently Asked Questions
Q1: What is the maximum digging depth of the XE200GA Excavator?
The maximum digging depth of the excavator is 6460mm.
Q2: How long does shipping take to Africa, Southeast Asia, or South America?
Standard delivery is 35–40 days. Customized models may require 45–50 days.
Q3: What optional configurations are available for this excavator?
The XCMG XE200GA crawler excavator can be equipped with optional attachments such as a breaker circuit, hydraulic breaker, mechanical quick coupler, and hydraulic quick coupler to broaden its application scope.
